Refactor recommendations

Overview

The refactor exporter provides a way to generalize a set of ALFA definitions such that common fields are elevated into common ‘Base’ types (generalize), and existing types extend the ‘Base’ type with fields unqiue to them (specialize).

If a field’s name and data type are identical across 2 or more definitions, it becomes a candidate to be generalized into a ‘Base’ type definition. This may not always be suitable, therefore the behaviour can be controlled via configuration.

This action is performed as an export, without modifying the orignal source, so it is possible to evaluate options, identify reusable model patterns and guide how a model could look.

Usage:

The export can excuted using the ALFA Maven CLI command:

mvn "com.schemarise.alfa.utils:alfa-maven-plugin:3.5.5:cli" "-Dalfa.exporters=refactor" "-Dalfa.output=target" "-Dalfa.settings=namespace=demo" "-Dalfa.sourcepath=model"

NOTE: The sourcepath is the path to the existing ALFA model defintions.

Example

Before

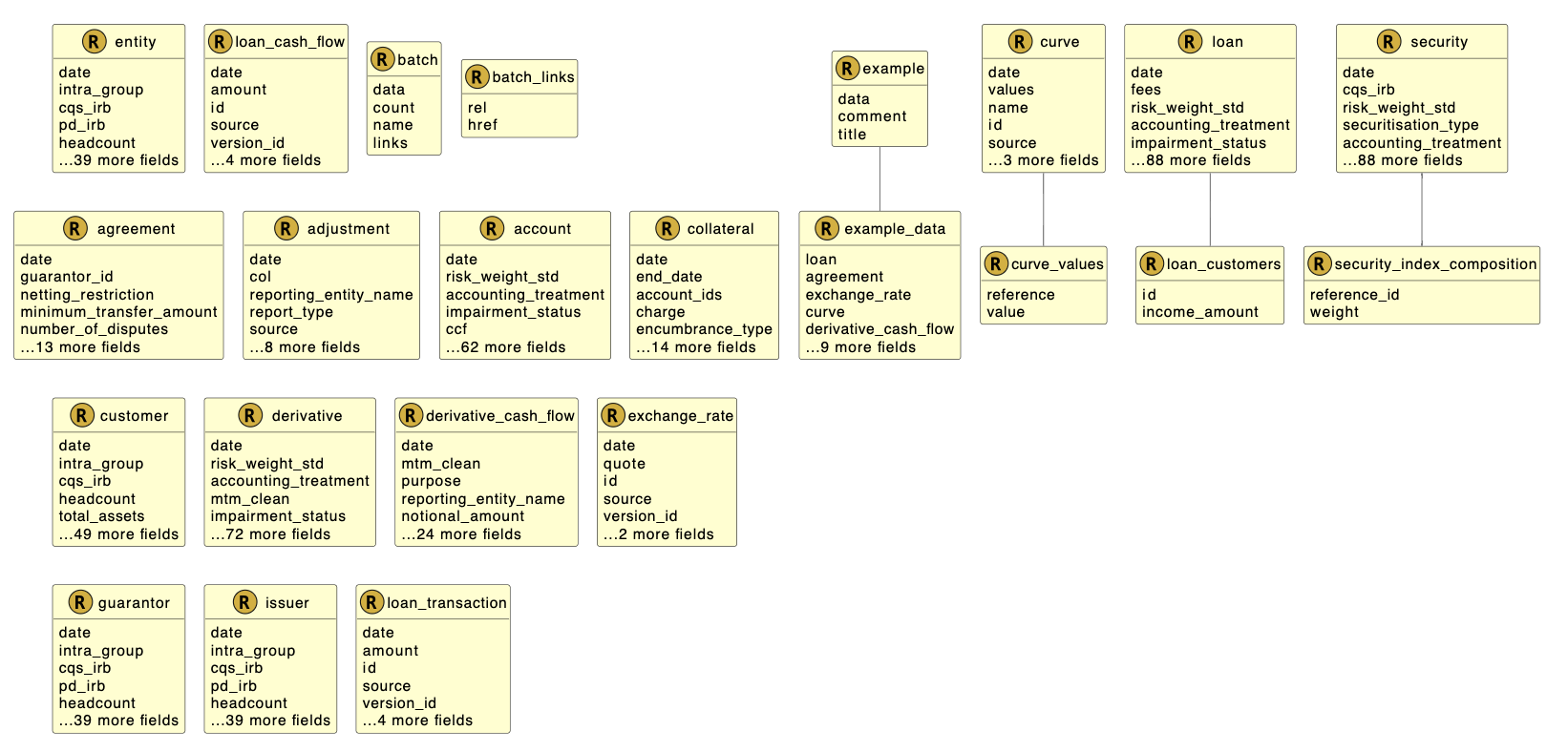

The following diagram shows a generated diagam from an JSON Schema model imported into ALFA, before any refactor is performed.

This model contained definitions with some attributes being common to many definitions in the model (e.g. source, version_id). Overall, the model definitions are ‘disconnected’ and isolated.

Before refactor

After

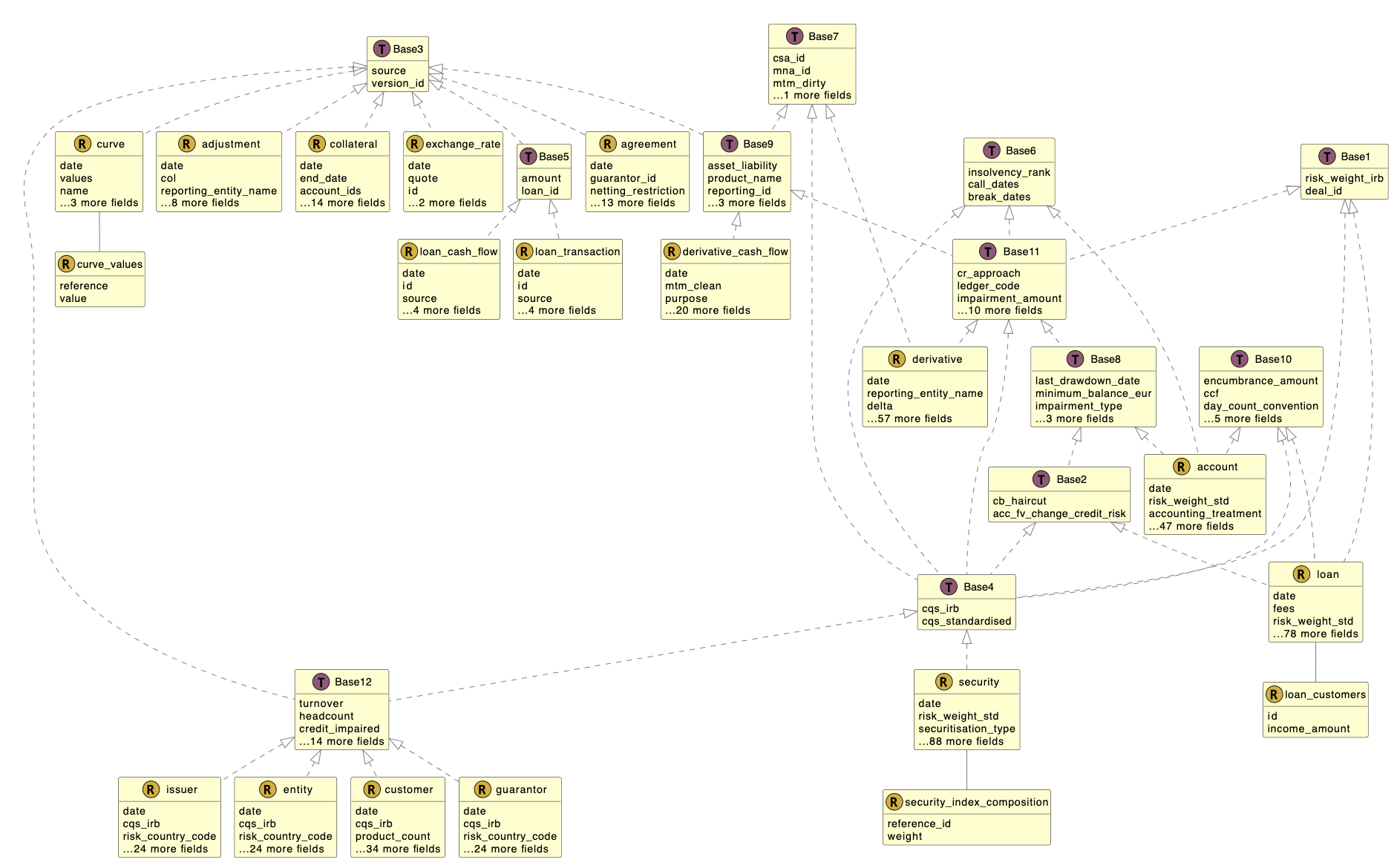

The diagram below shows the generated diagram after refactor export is performed. Common attributed have been brought out as ‘Base’ types, allowing some hierachy to be seen.

If suitable names are given to generated ‘Base’ definitions, in many cases, the model as a whole can result in a better representation.

After refactor

Configuration

The refactoring can be controlled via configuration such as to control over-generalization with many levels in a hierarchy.

These can be set via settings configuration.

  • ignoreFields : comma seprated list of fields not to be considered for refactoring
  • groupAttribSizeThreshold : number of attributes considered ‘common’ between 2 or more types before a Base type is created, default 2
  • groupUsageCountPercentage : number of types from which fields are being specialized into a Base type
  • generatedNamePrefix : Prefix to be used for Base types. Default is ‘Base’
